Products >> Ball Transfer Unit >> BT254 |
![](http://www.tycon.net//Uploads/Product/129073063870618404.jpg) |
|
Name:ball transfer unit |
Model:BT254-0110 |
Information:
|
|
![](Images/e_mail.jpg) |

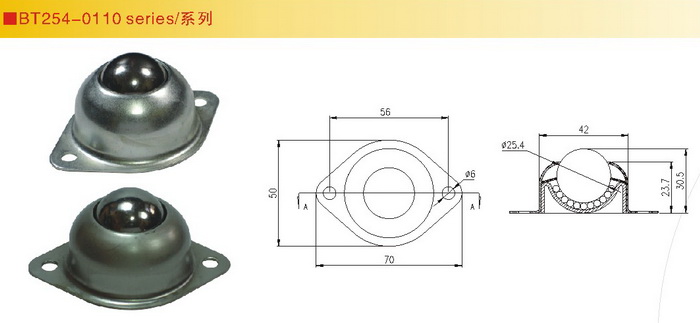

![](/Sx2008File/2010-01-07-10-53-06.jpg) Model | Main Ball | Sub Ball | Ball Cup | Housing | Remark | Dia(mm) | Material | Dia(mm) | Material | |
BT254-0110 | 25.4 | Carbon Steel | 3.18 | Carbon Steel | Carbon Steel,Hardened,Z/P | Carbon Steel,Z/P | | BT254-0110N | 25.4 | Nylon | 3.18 | Carbon Steel | Carbon Steel,Hardened,Z/P | Carbon Steel,Z/P | | BT254-0110SS | 25.4 | Stainless | 3.18 | Stainless | Stainless | Stainless | |
Loading Capacity(kg):
ball up | ball down | 50 | 20 | 10 | 5 | 30 | 10 |
|
|
