| Products >> Flexforce Expandable & Flexible Conveyor >> steel roller, standard model |
 |
| |

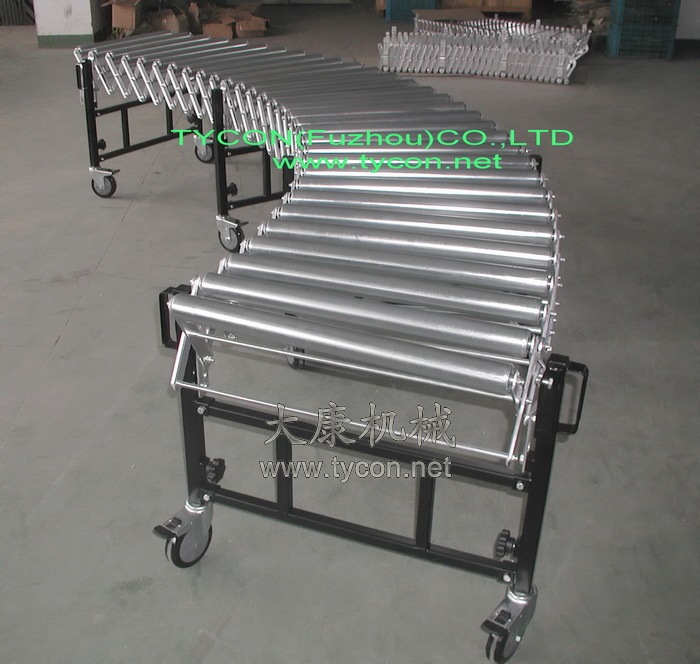

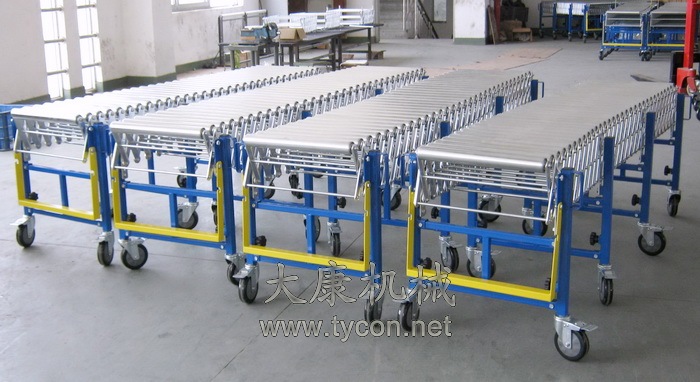

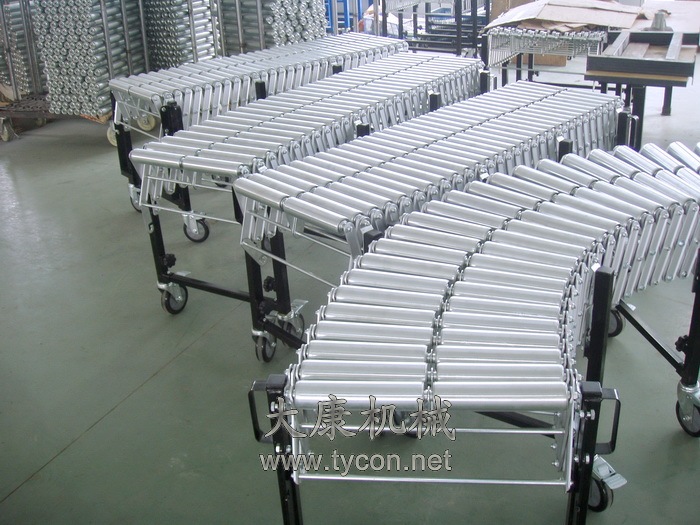

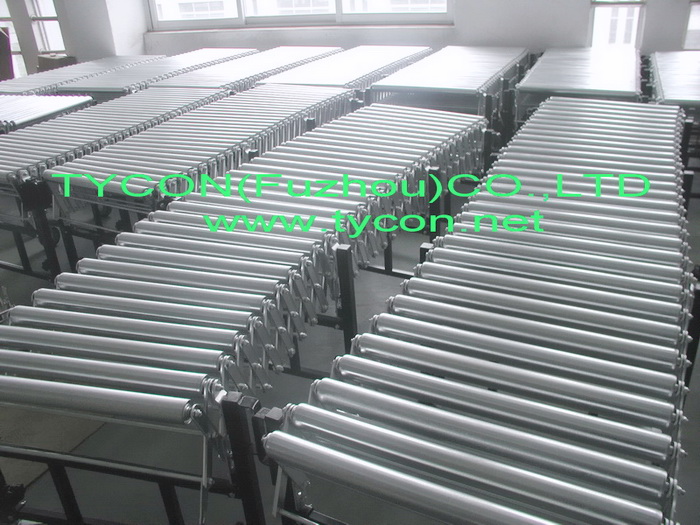

| Name：steel roller, standard model |
| Model：EHR model |
|
Information：
roller material, carbon steel, stainless, PVC, rubber coated optional |
|
 |

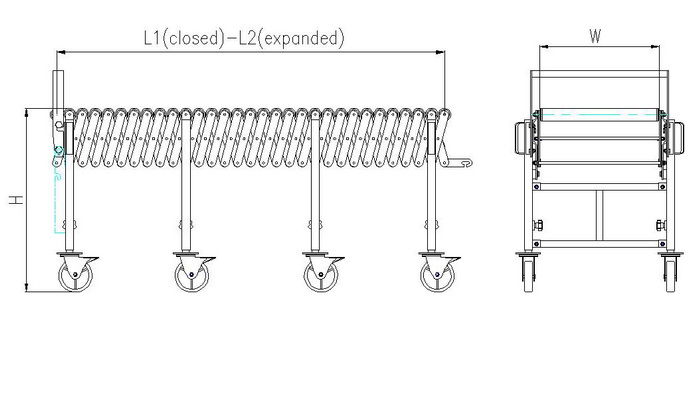

1) L1:L2=1.5:4
2) 50mm roller diameter, carbon steel, stainless, PVC, rubber coated optional 3) flat steel with powder coated or ribbed aluminum alloy side plate
4) square tube support leg, all caster with brake
※ for more detail information, please refer to the catalogue
Standard:
width: 460mm, 610mm, 760mm
height: 0.7m to 1m adjustable
length: closed=1.5m, expanded=4m
capacity: 136kg/0.3m
Customized Model Available standard model

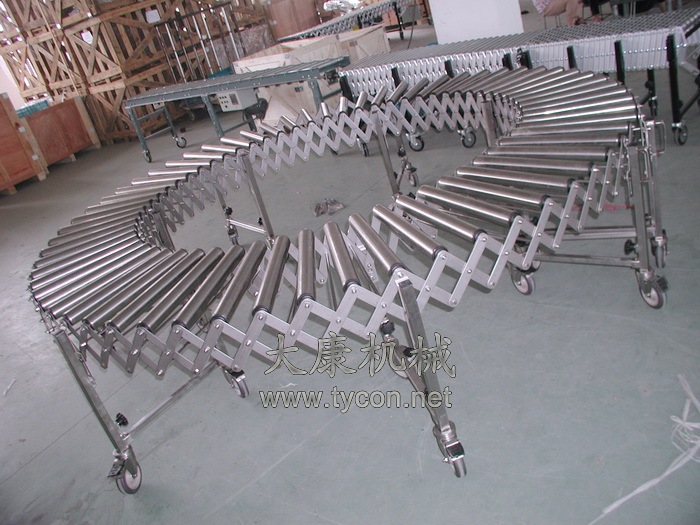

stainless model

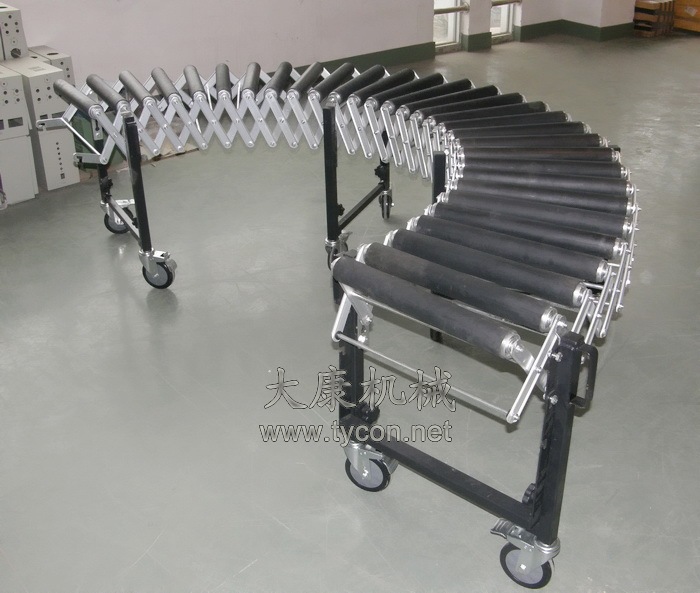

rubber coated model
double rows model
|
|
