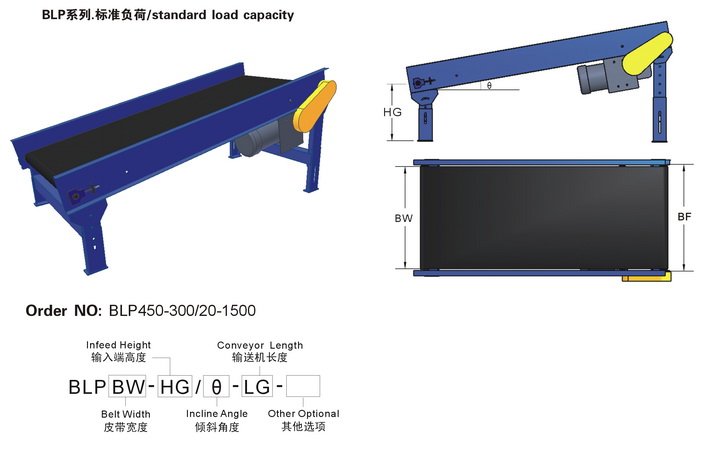

Model 型号	Belt/皮带			HG	θ	Loading Capacity 承载能力  (kg/m)
	BW	BF	Belt Thickness 皮带厚度 (mm)	Infeed Height 输入端高度 (mm)	Incline Angle 倾斜角度 (degree)
	Belt  Width 皮带宽度 (mm)	Between Frame Width 框架间距离 (mm)
BLP350	350	360	2,3,5	250	20 ,30 ,45	35
BLP450	450	460		350		45
BLP550	550	560		450		55
BLP650	650	660		550		65
BLP750	750	760		650		75
BLP950	950	960		750		95

1) Standard

     Belt --- PVC, green or black color

     Frame --- carbon steel, powder coated

     Control --- stop/start/reversing controls, Variable speed controller

2) Optional

     Belt --- PU, as is classed as food grade

     Frame --- stainless, aluminum profile construction

     Control --- Photo cell controls

      Fixed or adjustable guide rail

Customized Model Available
