| Products >> Joloda Bearing Wheel & Pulley >> HP series steel house bearing |
 |
| |
| Name：Housed bearing |
| Model：HP830 - HP1260 series |
|
Information：
Precision bearing + steel housing structure,
housed zinc plated,
for swaged conveyor roller. |
|
 |

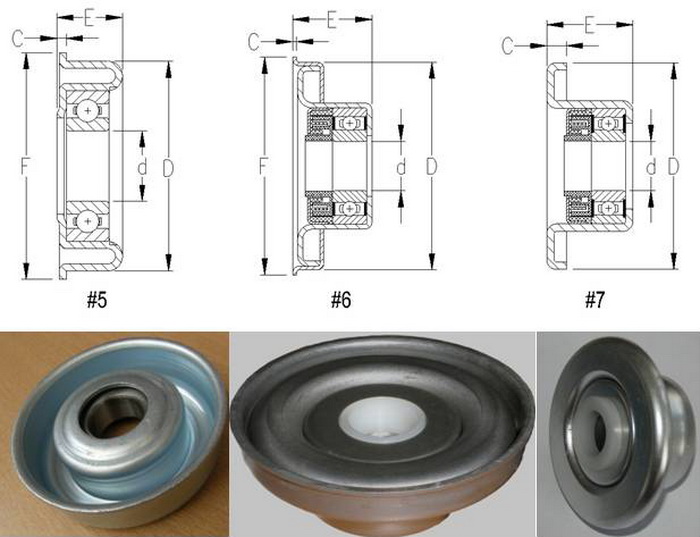

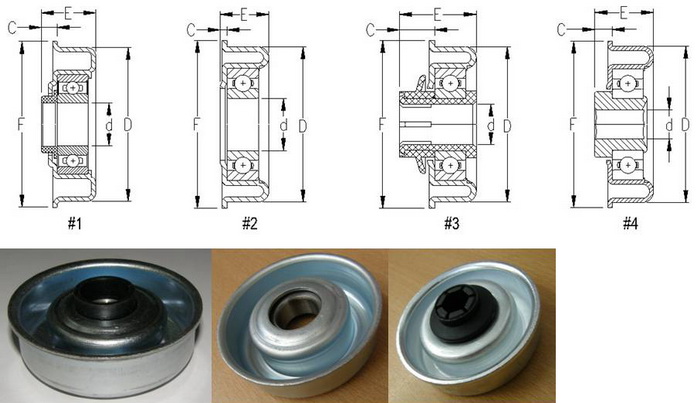

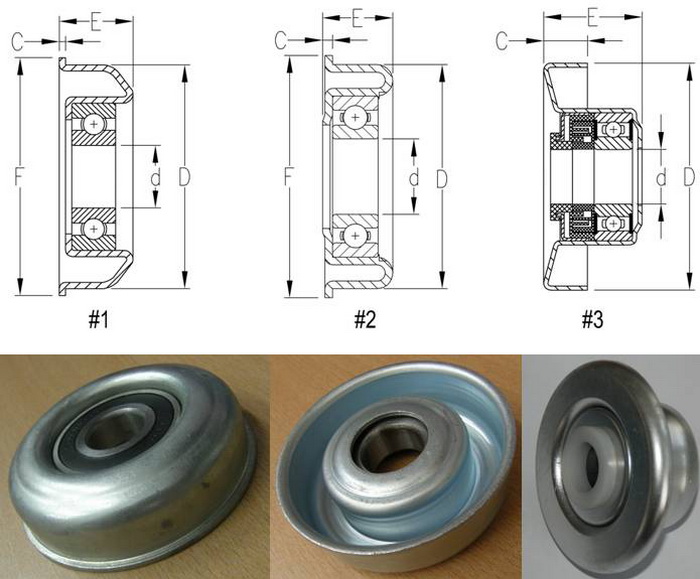

# | Part No. | Dimension(MM) | Bearing/Ball | Rating | Remark | D | d | F | E | C | No. | Dia | kg | 1 | HP830-2010 | 83.0 | 20.0 | 88.5 | 23.0 | 2.0 | 6204-2RS | 159 | A5870-R0 | 2 | HP830-2000 | 83.0 | 20.0 | 89.0 | 25.0 | 5.5 | 6204ZZ | 159 | A3627-R0 | 3 | HP832-2010 | 83.2 | 20.0 | 83.2 | 36.0 | 16.0 | 6204-2RS | 159 | A5864-R0 |
# | Part No. | Dimension(MM) | Bearing/Ball | Rating | Remark | D | d | F | E | C | No. | Dia | kg | 1 | HP836-2010 | 83.6 | 20.0 | 86.6 | 28.5 | 7.0 | 6204ZZ | 159 | A6145-R2 | 2 | HP836-2000 | 83.6 | 20.0 | 86.6 | 23.5 | 2.0 | 6204ZZ | 159 | A6148-R4 | 3 | HP840-1100H | 84.0 | 11.5 | 88.7 | 26.1 | 4.6 | 6303ZZ | 159 | A6265-R0 | 4 | HP840-1810H | 84.0 | 17.7 | 89.0 | 29.5 | 9.0 | 6205ZZ | 159 | A3692-R0 |
# | Part No. | Dimension(MM) | Bearing/Ball | Rating | Remark | D | d | F | E | C | No. | Dia | kg | 5 | HP840-2000 | 84.0 | 20.0 | 88.7 | 23.5 | 2.0 | 6204-2Z | 159 | A6178-R0 | 6 | HP840-2020 | 84.0 | 20.0 | 88.0 | 32.0 | 1.5 | 6204-2RS | 159 | A5847-R10 | 7 | HP840-2030 | 84.0 | 20.0 | / | 35.0 | 8.0 | 6204-2RS | 159 | A5852-R0 |

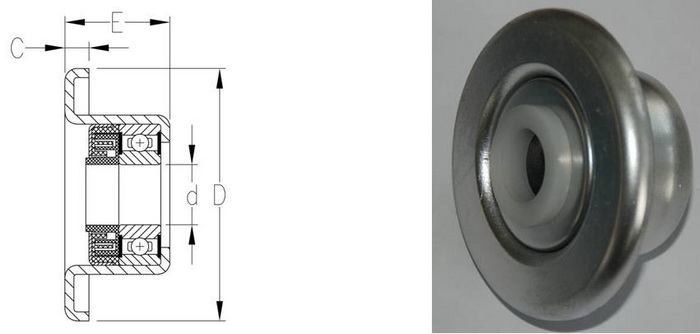

# | Part No. | Dimension(MM) | Bearing/Ball | Rating | Remark | D | d | F | E | C | No. | Dia | kg | 1 | HP960-2010 | 96.0 | 20.0 | / | 35.0 | 8.0 | 6204-2RS | 159 | A5853-R1 | 1 | HP960-2510 | 96.0 | 25.0 | / | 35.0 | 8.0 | 6205-2RS | 159 | A5854-R0 |

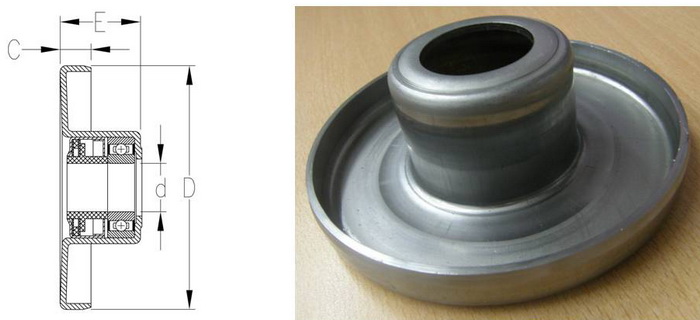

# | Part No. | Dimension(MM) | Bearing/Ball | Rating | Remark | D | d | F | E | C | No. | Dia | kg | | HP1260-2500 | 126 | 25 | / | 42.4 | 16 | 6205 | 159 | A6144-R2 |
|
|
