| Products >> Joloda Bearing Wheel & Pulley >> PL series plastic house bearing |
 |
| |
| Name：Plastic housed bearing |
| Model：PL470 - PL577 series |
|
Information：

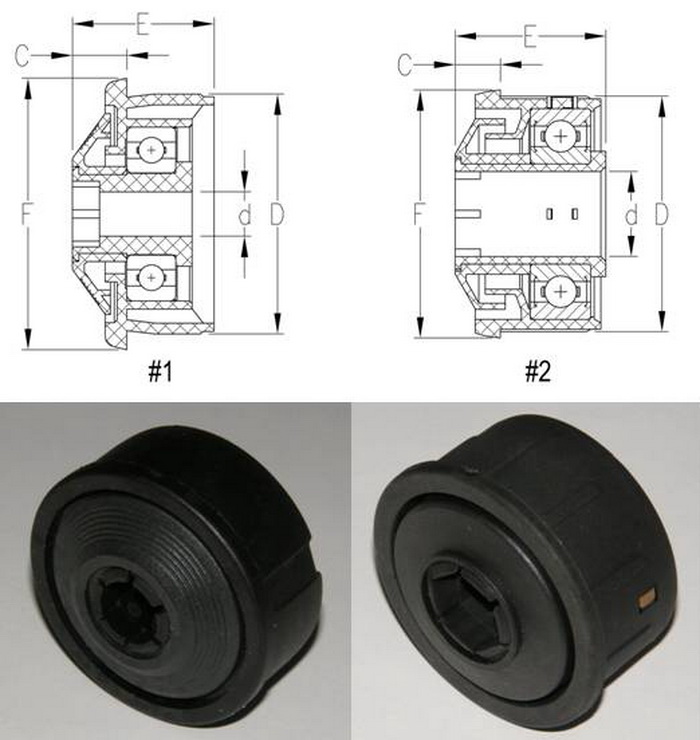

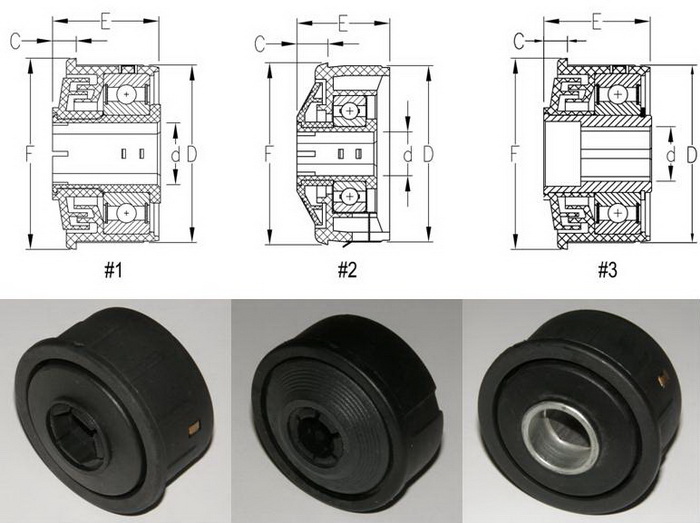

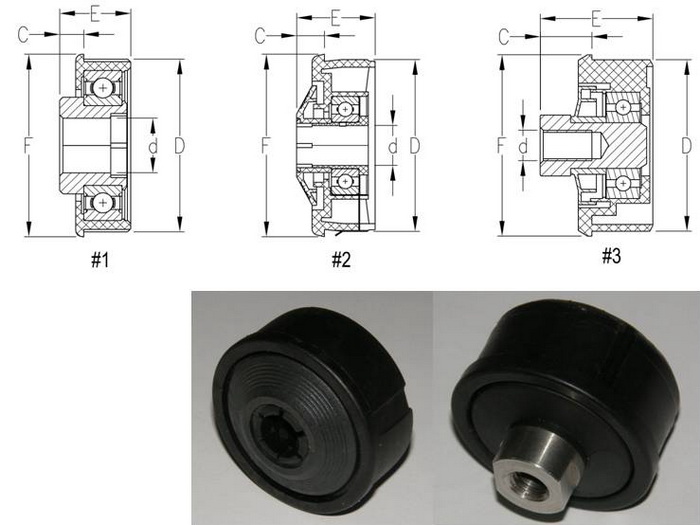

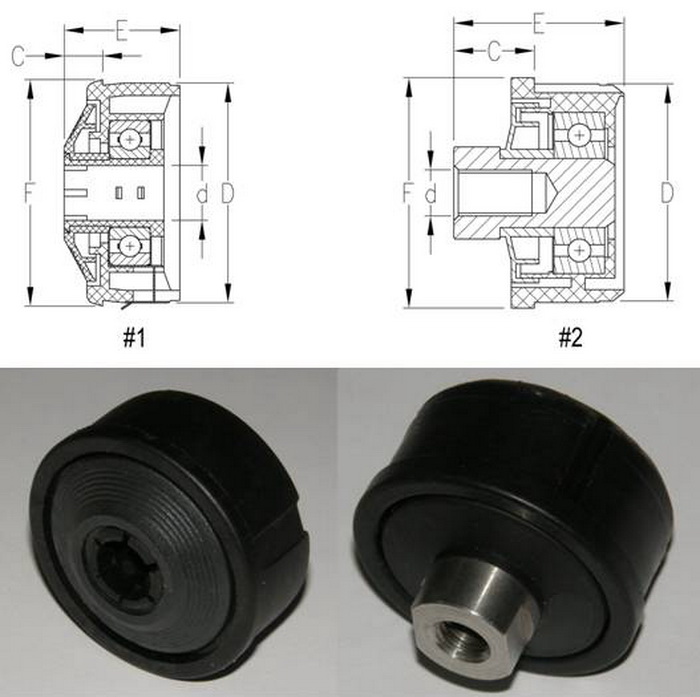

Precision bearing + plastic housing structure,for press fit or swaged conveyor roller. |
|
 |
# | Part No. | Dimension(MM) | Bearing/Ball | Rating | Remark | D | d | F | E | C | No. | Dia | kg | 1 | PL470-0810 | 47.0 | 8.2 | 49.0 | 28.0 | 10.5 | 6002ZZ | | A3953-R1 | 1 | PL470-1010 | 47.0 | 10.2 | 49.0 | 28.0 | 10.5 | 6002ZZ | | A3953-R1 | 1 | PL470-1210 | 47.0 | 12.2 | 49.0 | 28.0 | 10.5 | 6002ZZ | | A3953-R1 | 2 | PL470-1710 | 47.0 | 17.3 | 49.5 | 30.0 | 9.0 | 6004-2RS | | A3665-R0 | 1 | PL472-0800 | 47.2 | 8.0 | 49.8 | 26.0 | 10.0 | 6002ZZ | | A1952-R0 |
TEST BACKMANEGE
# | Part No. | Dimension(MM) | Bearing/Ball | Rating | Remark | D | d | F | E | C | No. | Dia | kg | 1 | PL475-1200 | 47.5 | 12.3 | 49.8 | 25.0 | 8.0 | 6002ZZ | | A6100-R1 | 2 | PL475-M1020SS | 47.5 | M10 | 50.0 | 37.0 | 17.5 | 6202-2RS | | A5410-R4 | 1 | PL484-1200 | 48.4 | 12.3 | 49.8 | 25.5 | 8.5 | 6002ZZ | | A3148-R0 |
TEST BACKMANEGE
# | Part No. | Dimension(MM) | Bearing/Ball | Rating | Remark | D | d | F | E | C | No. | Dia | kg | 1 | PL542-1710H | 54.2 | 17.1H | 57.2 | 22.2 | 7.5 | 6005-2RS | | A3560-R0 | 2 | PL560-1100H | 56.0 | 11.3H | 59.5 | 25.5 | 9.0 | 6002-2RS | | A3423-R1 | 3 | PL560-M1020SS | 56.5 | M10 | 59.7 | 37.0 | 17.0 | 6202-2RS | | A5411-R4 |
TEST BACKMANEGE
# | Part No.
品名 | Dimension尺寸(MM) | Ball钢球 | Rate负载 | Remark
说明 | D | d | F | E | C | No. | Dia | kg | 2 | PL570-1200 | 57.0 | 12.0 | 59.5 | 27.0 | 9.0 | 6002-ZZ | | A3657-R0 | 1 | PL576-1810H | 57.6 | 17.7H | 62.0 | 35.0 | 7.7 | 6205-ZZ | | A3313-R0 | 3 | PL577-1801H | 57.6 | 17.7H | 62.0 | 35.0 | 7.7 | 6205-ZZ | | A6404-R0 |
|
|
