| Products >> Joloda Bearing Wheel & Pulley >> SKM series steel wheel |
 |
| |
| Name：Steel skate wheel |
| Model：SKM series |
|
Information：
Outer race in 2pcs.
Racyway carefully hardened.
Zinc plated finish, except stainless model.
Standard capacity. |
|
 |

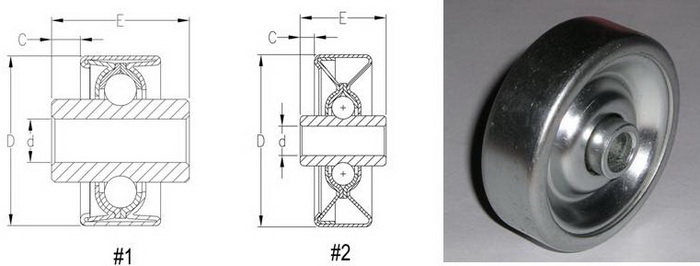

# | Part No. | Dimension(MM) | Bearing/Ball | Rating | Remark | D | d | E | C | No. | Dia | kg | | SKM254-0600 | 25.4 | 6.5 | 20.6 | 4.3 | 8 | 4.76 | 20 | A6107-R0 | | SKM480-0802 | 48.0 | 8.2 | 24.0 | 7.9 | 7 | 6.35 | 20 | A5533-R0 |

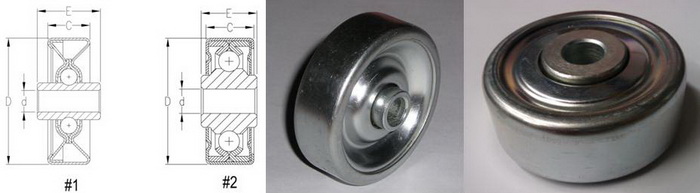

# | Part No. | Dimension(MM) | Bearing/Ball | Rating | Remark | D | d | E | C | No. | Dia | kg | 1 | SKM493-0600 | 49.3 | 6.5 | 20.7 | 16.1 | 7 | 6.35 | 20 | A5959-R0 | 2 | SKM577-1100 | 57.7 | 11.1 | 25.4 | 21.8 | 11 | 9.53 | 136 | A1997-R1 | 2 | SKM577-0800 | 57.7 | 8.2 | 25.4 | 21.8 | 11 | 9.53 | 136 | A1997-R1 |
|
|
