| Products >> Joloda Bearing Wheel & Pulley >> HP series steel house bearing |
 |
| |
| Name：Housed bearing |
| Model：HP350 - HP557 series |
|
Information：
Precision bearing + steel housing structure.
House zinc plated.
For swaged conveyor roller. |
|
 |

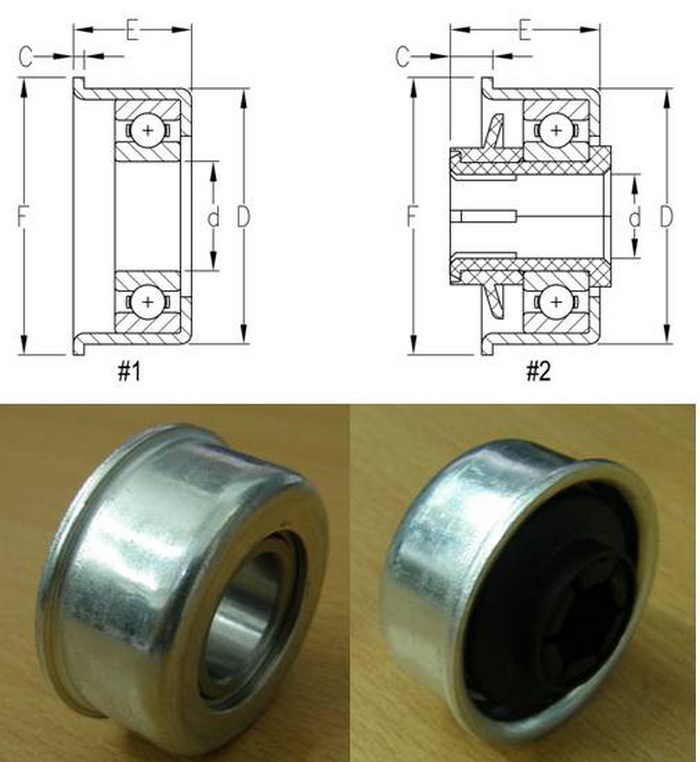

# | Part No. | Dimension(MM) | Bearing/Ball | Rating | Remark | D | d | F | E | C | No. | Dia | kg | 1 | HP350-1500 | 35.0 | 15.0 | 38.0 | 16.2 | 1.5 | 6002 | 136 | A6248-R2 | 2 | HP350-1120H | 35.0 | 11.5H | 38.0 | 22.0 | 5.8 | 6002 | 136 | A6248-R2 |

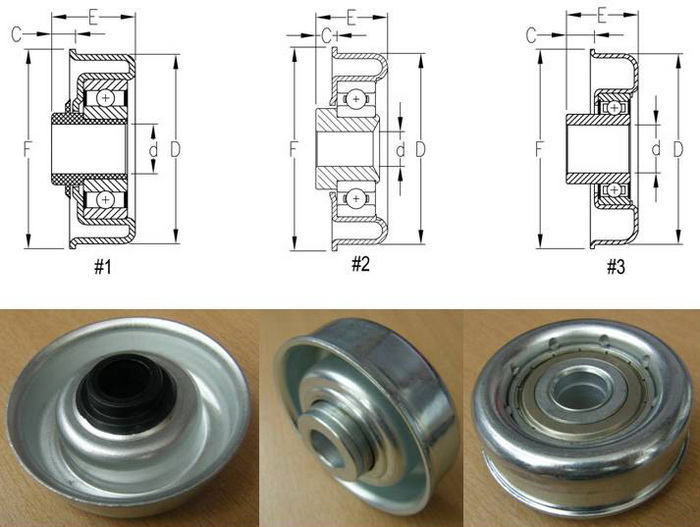

Dwg # | Part No. | Dimension(MM) | Bearing/Ball | Rating | Remark | D | d | F | E | C | No. | Dia | kg | 1 | HP380-1500 | 38.0 | 15.0 | 41.0 | 15.5 | 1.5 | 6002ZZ | 159 | A6239-R0 | 2 | HP380-1100H | 38.0 | 11.5H | 41.0 | 22.0 | 6.2 | 6002ZZ | 159 | A6239-R0 | 3 | HP413-1500 | 41.2 | 15.0 | 44.2 | 15.0 | 2.4 | 6002ZZ | 159 | A1693-R3 | 4 | HP413-1000H | 41.2 | 9.9H | 44.2 | 22.4 | 9.8 | 6002ZZ | 159 | A1693-R3 |

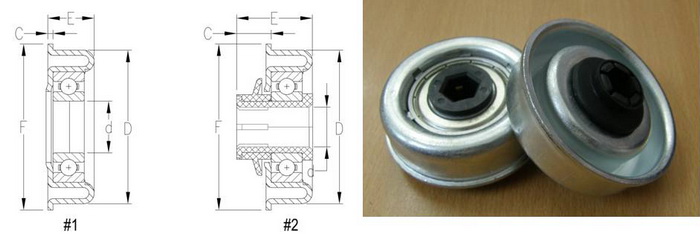

Dwg # | Part No. | Dimension(MM) | Bearing/Ball | Rating | Remark | D | d | F | E | C | No. | Dia | kg | 1 | HP422-1500 | 42.2 | 15.0 | 45.8 | 13.9 | 2.0 | 6002ZZ | 159 | A6269-R0 | 2 | HP422-1110H | 42.2 | 11.3H | 45.8 | 22.0 | 10.0 | 6002ZZ | 159 | A6269-R0 | 2 | HP445-1110H | 44.6 | 11.3H | 48.1 | 22.0 | 10.0 | 6002ZZ | 159 | A1688-R2 | 1 | HP445-1500 | 44.6 | 15.0 | 48.1 | 13.9 | 2.0 | 6002ZZ | 159 | A1688-R2 |

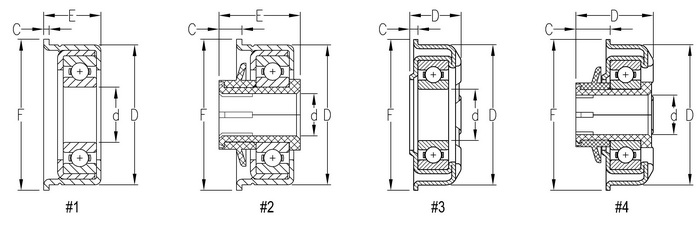

# | Part No. | Dimension(MM) | Bearing/Ball | Rating | Remark | D | d | F | E | C | No. | Dia | kg | 1 | HP450-1500 | 45.0 | 15.0 | 48.1 | 13.6 | 1.7 | 6002-ZZ | 159 | A1378-R10 | 2 | HP450-1110H | 45.0 | 11.4H | 48.1 | 22.0 | 10.0 | 6002-ZZ | 159 | A1378-R10 | 3 | HP450-0810 | 45.1 | 8.3 | 48.1 | 22.0 | 10.0 | 6002-ZZ | 159 | A3664-R0 | 4 | HP450-1102H | 45.1 | 11.4H | 48.0 | 18.5 | 7.0 | 6002-ZZ | 159 | A3602-R0 | 4 | HP450-1120H | 45.1 | 11.4H | 48.0 | 17.1 | 5.5 | 6002-ZZ | 159 | A3056-R0 |

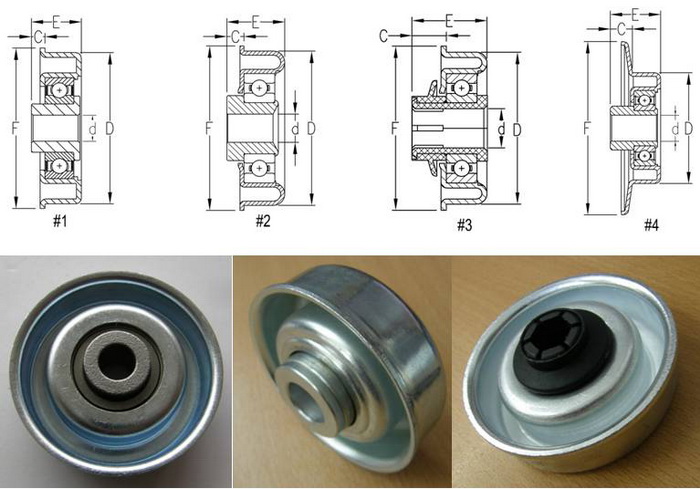

# | Part No. | Dimension(MM) | Bearing/Ball | Rating | Remark | D | d | F | E | C | No. | Dia | kg | 1 | HP470-0801 | 47.0 | 8.2 | 49.8 | 15.5 | 4.2 | 6002ZZ | 152 | A1943-R1 | 1 | HP470-1001 | 47.0 | 10.2 | 49.8 | 15.5 | 4.2 | 6002ZZ | 152 | A1943-R1 | 1 | HP470-1201 | 47.0 | 12.2 | 49.8 | 15.5 | 4.2 | 6002ZZ | 152 | A1943-R1 | 1 | HP470-0810 | 47.0 | 8.2 | 49.8 | 15.5 | 4.2 | 6002ZZ | 152 | A5439-R0 | 2 | HP470-1010 | 47.0 | 10.2 | 49.8 | 17.3 | 5.7 | 6002ZZ | 152 | A3086-R0 | 3 | HP470-1100H | 47.0 | 11.3 | 49.8 | 22.0 | 10.0 | 6002ZZ | 152 | A3765-R0 | 4 | HP470-1110H | 47.0 | 11.3 | 73.5 | 21.3 | 9.3 | 6002ZZ | 152 | A3951-R0 |

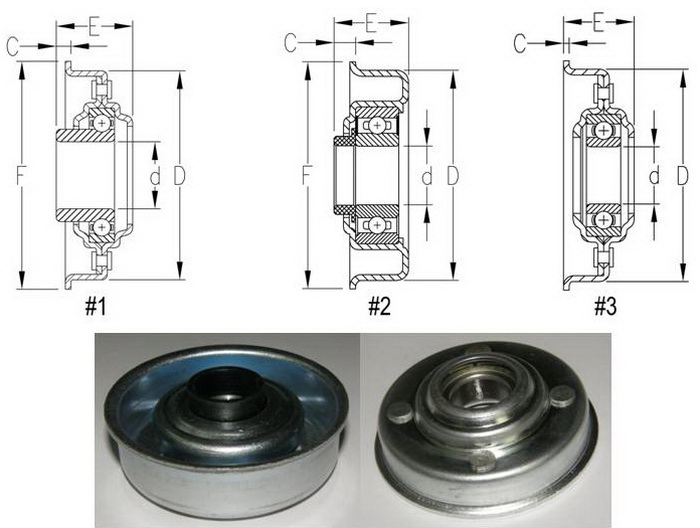

# | Part No. | Dimension(MM) | Bearing/Ball | Rating | Remark | D | d | F | E | C | No. | Dia | kg | 1 | HP475-1201 | 47.5 | 12.5 | 50.0 | 21.0 | 6.0 | 6202ZZ | 84 | A6079-R0 | 2 | HP478-1000 | 47.7 | 10.2 | 50.7 | 17.3 | 5.7 | 6002ZZ | 145 | A3093-R0 | 3 | HP478-1200 | 47.8 | 12.0 | 50.0 | 18.0 | 7.0 | 6001ZZ | 145 | A5651-R0 |

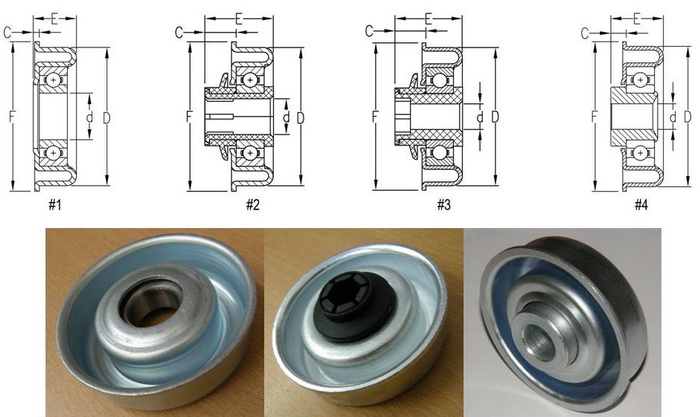

# | Part No. | Dimension(MM) | Bearing/Ball | Rating | Remark | D | d | F | E | C | No. | Dia | kg | 1 | HP530-1530 | 53.0 | 15.0 | 59.9 | 20.8 | 4.0 | 6002ZZ | 136 | A3165-P1 | 2 | HP537-1510 | 53.6 | 15.0 | 58.0 | 19.0 | 5.5 | 6202ZZ | 136 | A5900-R2 | 3 | HP557-1500 | 55.7 | 15.0 | 60.2 | 18.5 | 1.5 | 6002ZZ | 136 | A6401-R0 |
|
|
|
