| Products >> Roller Conveyor >> chain driven, straight model |
 |
| |

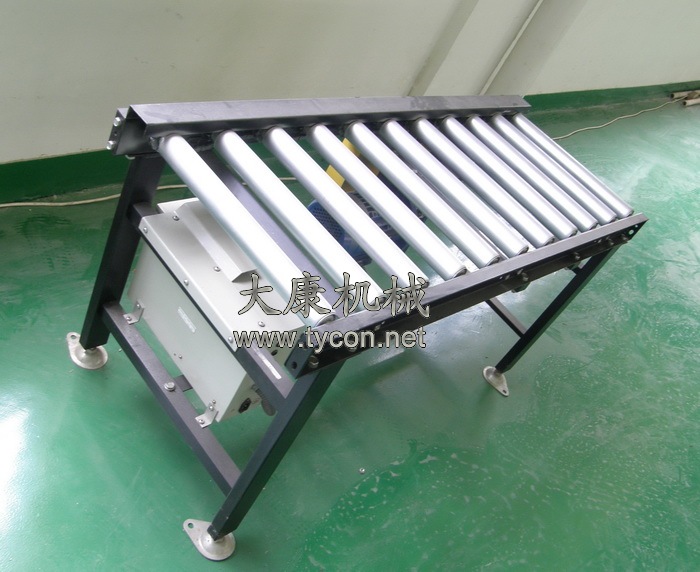

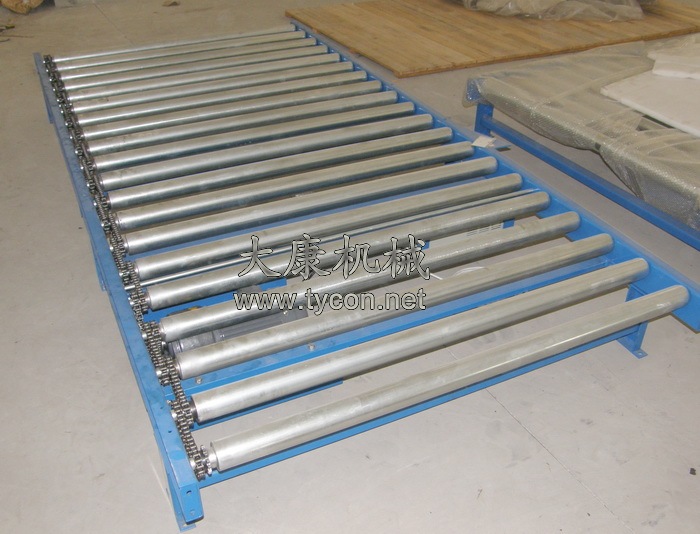

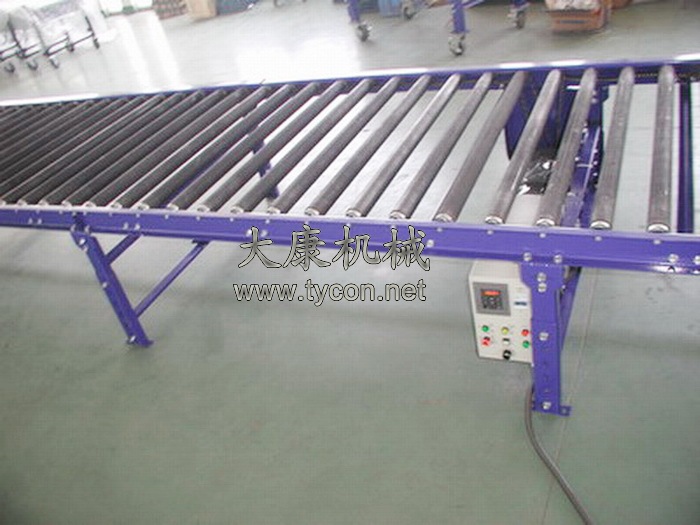

| Name：chain driven, roller conveyor |
| Model：CRC Model |
|
Information：
postive drive,often installed to transport heavy loads, like boxes, pallets,etc. |
|
 |

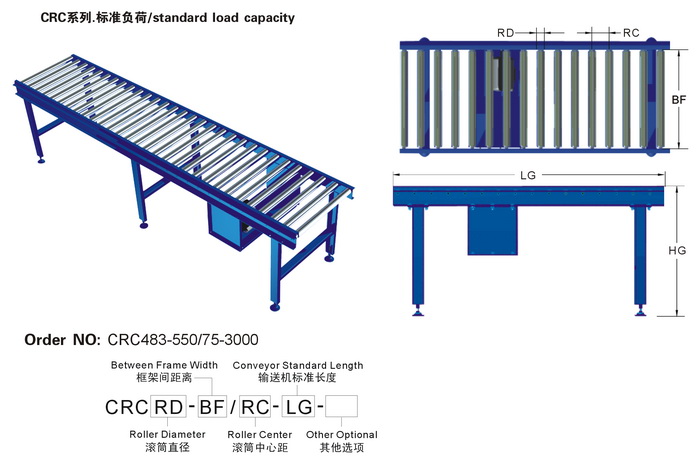

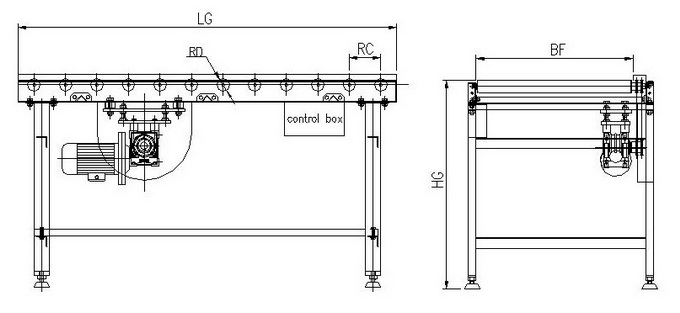

型号/Model | Roller/滚筒 | BF | RC | LG | HG | RD | Capacity承载
(kg) | Between Frame Width
框架间距离
(mm) | Roller Center
滚筒中心距
(mm) | Conveyor Length
输送机长度
(mm) | Between Frame Width
框架间距离
(mm) | Roller Diameter
滚筒直径
(mm) | CRC483 | 48.3 | 65 | 350 | 75,125,150 | 3000 | 700-1000 | 55 | 450 | 45 | 550 | CRC635 | 63.5 | 100 | 650 | 90 | 750 | 70 | 950 |
1)Standard
Roller --- carbon steel, zinc plated, double spring, precision bearing
Frame --- carbon steel, powder coated
Control --- control panel, variable speed controller
2)Optional
Roller --- stainless, galvanized, rubber coated
Frame --- stainless, galvanized
Control --- photo cell controls
Customized Model Available |
|
