| Products >> Joloda Bearing Wheel & Pulley >> PL series plastic house bearing |
 |
| |
| Name：Plastic housed bearing |
| Model：PL174 - PL454 series |
|
Information：
Precision bearing + plastic housing structure,for press fit or swaged conveyor roller. |
|
 |

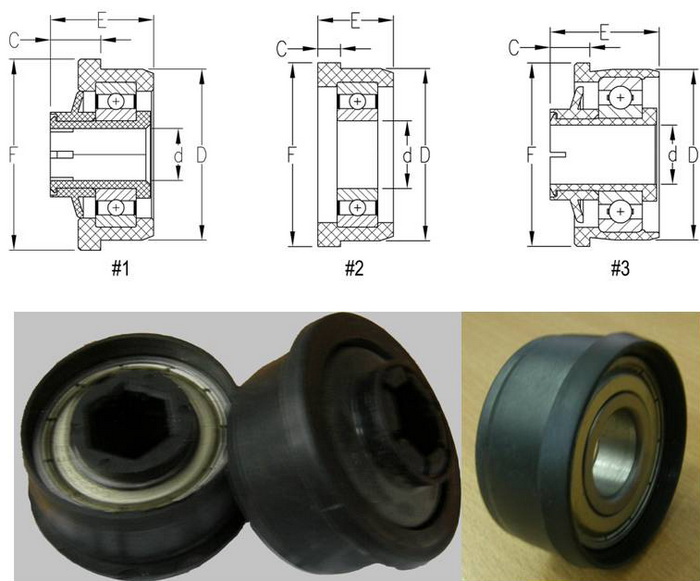

# | Part No. | Dimension(MM) | Bearing/Ball | Rating | Remark | D | d | F | E | C | No. | Dia | kg | 2 | PL174-0600 | 17.4 | 6.5 | 18.7 | 35 | 9.5 | 12 | 3.18 | | A3475-R0 | 1 | PL326-0810H | 32.6 | 8.2H | 34.2 | 21.7 | 8.2 | R8 | | A3328-R1 |

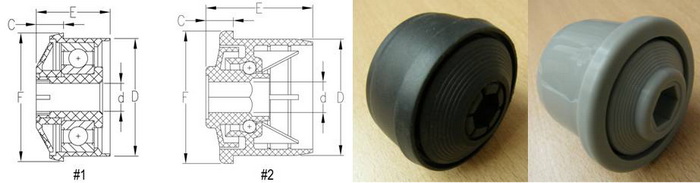

# | Part No. | Dimension(MM) | Bearing/Ball | Rating | Remark | D | d | F | E | C | No. | Dia | kg | 3 | PL350-0800 | 35.2 | 8.2 | 39.5 | 22.5 | 8.2 | 6002 | | A1953-R1 | 3 | PL350-1200 | 35.2 | 12.2 | 37.8 | 22.5 | 8.2 | 6002-ZZ | | A3200-R4 | 1 | PL378-1100H | 37.8 | 11.3H | 42.2 | 22.9 | 11.2 | 6002-ZZ | | A1353-R4 | 2 | PL381-1500 | 38.2 | 15.0 | 40.6 | 16.7 | 5.0 | 6002-ZZ | | A5694-R1 |

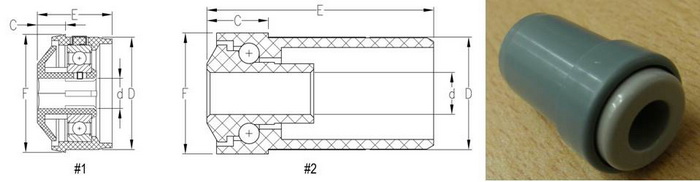

# | Part No. | Dimension(MM) | Bearing/Ball | Rating | Remark | D | d | F | E | C | No. | Dia | kg | 1 | PL420-1050SS | 42.0 | 10.5 | 47.0 | 25.0 | 7.0 | 8 | 4.76 | | A6014-R1 | 2 | PL423-1100H | 42.3 | 11.3H | 47.5 | 38.5 | 9.5 | 14 | 4.76 | | A5962-R0 | 3 | PL423-1101H | 42.3 | 11.3H | 47.8 | 23.5 | 7.5 | 18 | 3.18 | | A3724-R0 |

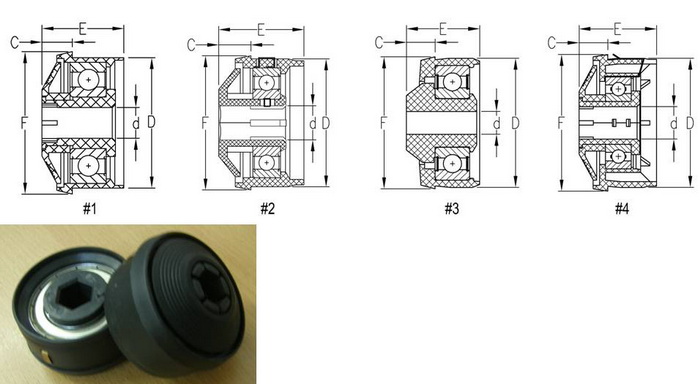

# | Part No. | Dimension(MM) | Bearing/Ball | Rating | Remark | D | d | F | E | C | No. | Dia | kg | 2 | PL425-1100H | 42.5 | 11.3H | 48.4 | 39.0 | 10.0 | 14 | 4.76 | | A6228-R4 | 1 | PL430-1010 | 43.0 | 10.2 | 47.0 | 27.0 | 10.0 | 6203 | | A3700-R1 | 1 | PL430-1210 | 43.0 | 12.3 | 47.0 | 27.0 | 10.0 | 6203 | | A3700-R1 |

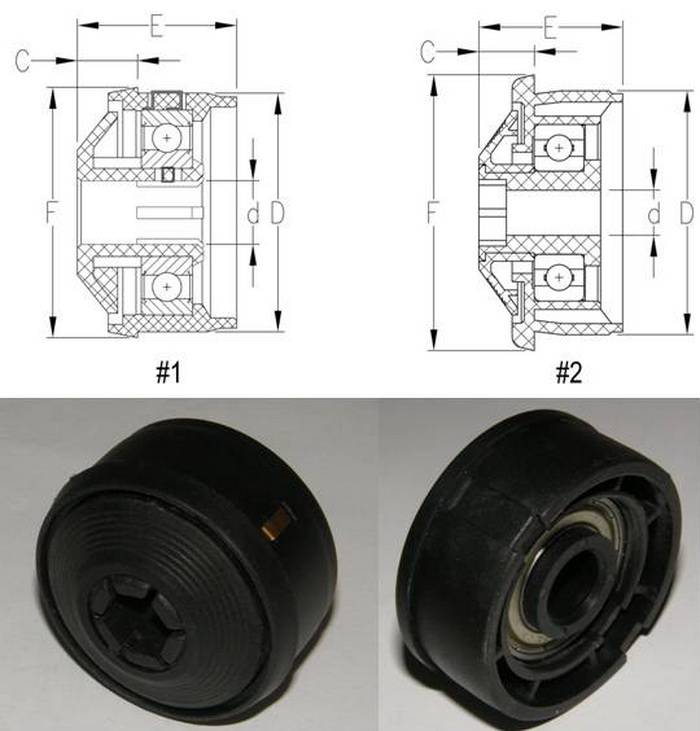

# | Part No. | Dimension(MM) | Bearing/Ball | Rating | Remark | D | d | F | E | C | No. | Dia | kg | 2 | PL442-0800 | 44.2 | 8.2 | 49.8 | 26.0 | 10.0 | 6002ZZ | | A1951-R0 | 1 | PL445-1100H | 44.5 | 11.3H | 47.0 | 27.0 | 10.0 | 6203-2RS | | A3595-R0 |

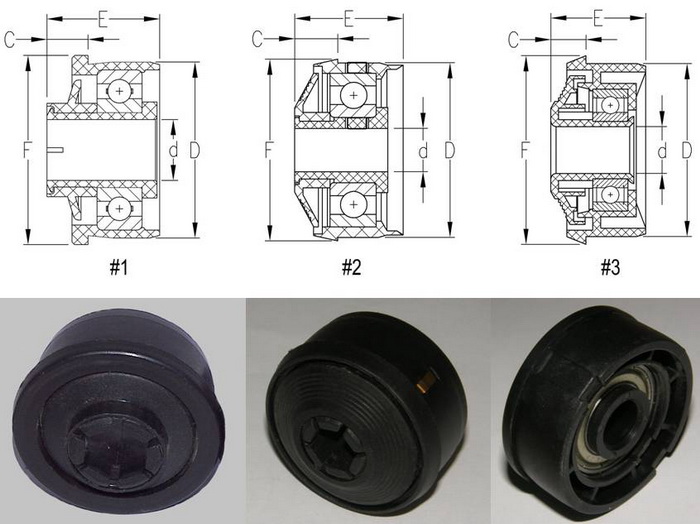

# | Part No. | Dimension(MM) | Bearing/Ball | Rating | Remark | D | d | F | E | C | No. | Dia | kg | 3 | PL450-0800 | 45.0 | 8.0 | 46.0 | 25.5 | 10.0 | 6203ZZ | | A3113-P2 | 4 | PL450-1101H | 45.0 | 11.3H | 47.5 | 27.0 | 10.0 | 6002ZZ | | A3615-R0 | 1 | PL450-1110H | 45.0 | 11.3H | 47.0 | 27.0 | 10.0 | 6203-2RS | 200 | A3653-R2 | 2 | PL450-1130H | 45.0 | 11.3H | 48.4 | 28.8 | 11.8 | 6203-2RS | | A1864-R1 | 1 | PL450-1300 | 45.0 | 12.9 | 47.5 | 27.0 | 10.0 | 6203-2RS | | A3526-R0 |

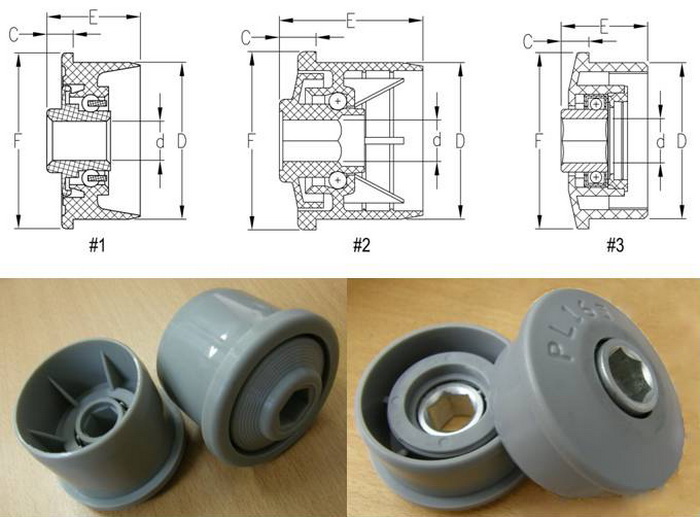

# | Part No. | Dimension(MM) | Bearing/Ball | Rating | Remark | D | d | F | E | C | No. | Dia | kg | 1 | PL452-1200H | 45.1 | 11.3H | 46.4 | 25.6 | 10 | 6203ZZ | | A1238-R3 | 2 | PL454-1100H | 45.4 | 11.3H | 47.3 | 28.2 | 11.2 | 6203-2RS | | A5021-R1 | 3 | PL454-1201N | 45.4 | 12.3 | 50.0 | 24.9 | 9.2 | 6002-2RS | | A1880-R0 |
|
|
