| Products >> Joloda Bearing Wheel & Pulley >> HB series steel house bearing |
 |
| |
| Name：Housed bearing |
| Model：HB276 - HB542 series |
|
Information：
Unground core bearing + steel housing,
Zinc plated.
For swaged conveyor roller. |
|
 |

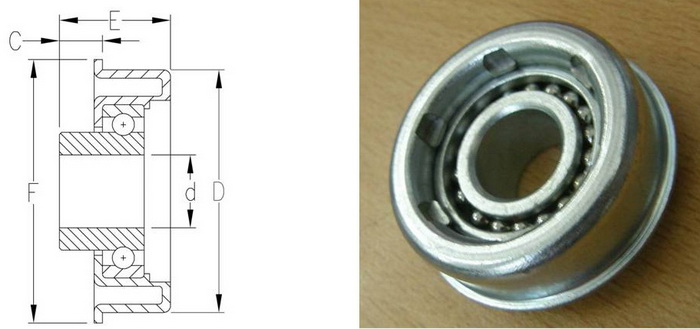

# | Part No. | Dimension(MM) | Bearing/Ball | Rating | Remark | D | d | F | E | C | No. | Dia | kg | 1 | HB276-0800 | 27.6 | 8.1 | 29.8 | 13.8 | 3.8 | 13 | 3.18 | 20 | A6129-R0 | 1 | HB350-1000 | 35.0 | 9.7 | 38.0 | 16.0 | 6.2 | 18 | 3.18 | 23 | A5874-R0 | 1 | HB350-1200 | 35.0 | 12.1 | 38.0 | 16.0 | 6.2 | 18 | 3.18 | 23 | A5874-R0 | 2 | HB350-1100H | 35.0 | 11.3H | 38.0 | 16.0 | 6.2 | 18 | 3.18 | 23 | A5875-R0 |

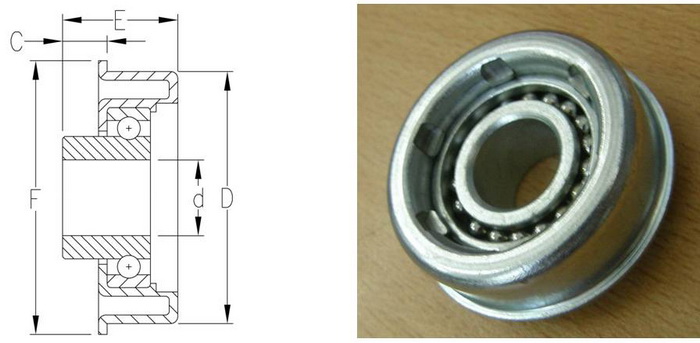

# | Part No. | Dimension(MM) | Bearing/Ball | Rating | Remark | D | d | F | E | C | No. | Dia | kg | | HB352-0810 | 35.2 | 8.1 | 38.0 | 16.0 | 6.2 | 18 | 3.18 | 23 | A5904-R4 | | HB352-1210 | 35.2 | 12.1 | 38.0 | 16.0 | 6.2 | 18 | 3.18 | 23 | A5904-R4 | | HB352-1220 | 35.2 | 12.1 | 38.0 | 16.0 | 6.2 | 18 | 3.18 | 23 | A6072-R3 | | HB359-1210 | 36.0 | 12.1 | 38.0 | 16.0 | 6.2 | 18 | 3.18 | 25 | A5905-R4 |

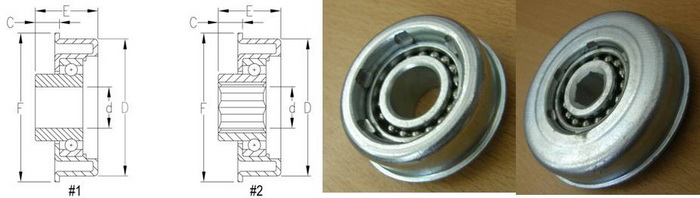

# | Part No. | Dimension(MM) | Bearing/Ball | Rating | Remark | D | d | F | E | C | No. | Dia | kg | 1 | HB412-1100H | 41.2 | 11.3H | 44.2 | 16.6 | 4.0 | 15 | 4.76 | 80 | A1655-R1 | 2 | HB438-1100H | 43.8 | 11.3 | 47.4 | 17.9 | 6.2 | 15 | 4.76 | 79 | |

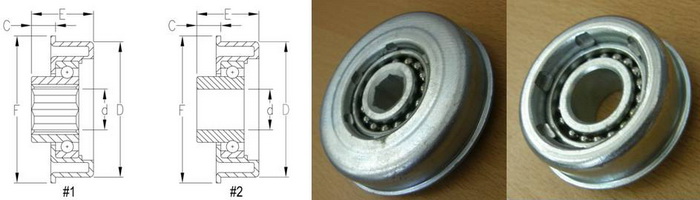

# | Part No. | Dimension(MM) | Bearing/Ball | Rating | Remark | D | d | F | E | C | No. | Dia | kg | 1 | HB450-1100H | 45.2 | 11.4H | 48.1 | 15.2 | 4.1 | 15 | 4.76 | 79 | A1559-R0 | 2 | HB470-1000 | 47.0 | 10.1 | 50.5 | 17.0 | 5.8 | 15 | 4.76 | 84 | A5876-R0 |

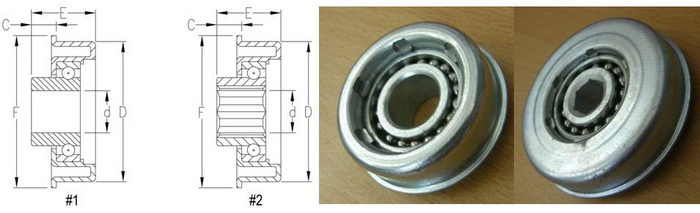

# | Part No. | Dimension(MM) | Bearing/Ball | Rating | Remark | D | d | F | E | C | No. | Dia | kg | 1 | HB477-1100H | 47.7 | 11.3H | 50.5 | 17.0 | 5.8 | 15 | 4.76 | 84 | A5877-R0 | 2 | HB477-1000 | 47.7 | 10.1 | 50.5 | 17.0 | 5.8 | 15 | 4.76 | 84 | A5878-R0 | 2 | HB477-1200 | 47.7 | 12.1 | 50.5 | 17.0 | 5.8 | 15 | 4.76 | 84 | A5878-R0 | 2 | HB477-1500 | 47.7 | 15.1 | 50.5 | 17.0 | 5.8 | 15 | 4.76 | 84 | A5878-R0 | 2 | HB482-1210 | 48.3 | 12.1 | 50.5 | 17.5 | 6.3 | 15 | 4.76 | 84 | A5906-R3 |

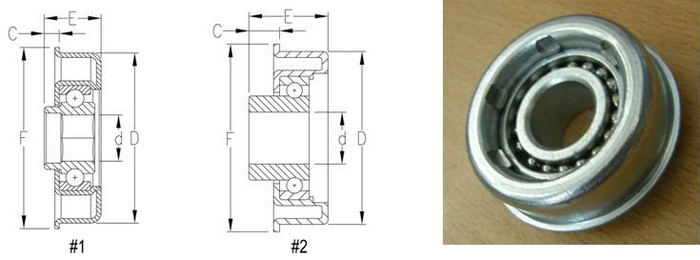

# | Part No. | Dimension(MM) | Bearing/Ball | Rating | Remark | D | d | F | E | C | No. | Dia | kg | | HB486-1210 | 48.7 | 12.1 | 50.5 | 17.5 | 6.3 | 15 | 4.76 | 84 | A6130-R2 | | HB491-1210 | 49.1 | 12.1 | 50.5 | 17.5 | 6.3 | 15 | 4.76 | 84 | A5907-R1 |

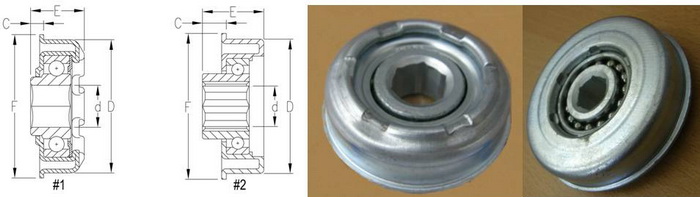

# | Part No. | Dimension(MM) | Bearing/Ball | Rating | Remark | D | d | F | E | C | No. | Dia | kg | 1 | HB540-1200 | 54.2 | 12.1 | 56.7 | 17.7 | 6.5 | 15 | 4.76 | 84 | A1868-R1 | 1 | HB540-1500 | 54.2 | 15.1 | 56.7 | 17.7 | 6.5 | 15 | 4.76 | 84 | A1868-R1 | 2 | HB542-1100H | 54.3 | 11.3H | 50.5 | 17.0 | 6.2 | 15 | 4.76 | 91 | A5879-R0 | 1 | HB542-1000 | 54.3 | 10.1 | 59.6 | 17.0 | 6.2 | 15 | 4.76 | 91 | A5880-R0 | 1 | HB542-1200 | 54.3 | 12.1 | 59.6 | 17.0 | 6.2 | 15 | 4.76 | 91 | A5880-R0 | 1 | HB542-1500 | 54.3 | 15.1 | 59.6 | 17.0 | 6.2 | 15 | 4.76 | 91 | A5880-R0 | 1 | HB542-1201 | 54.3 | 12.3 | 59.6 | 17.7 | 7.0 | 16 | 4.76 | 91 | A1190-R0 | 1 | HB542-1501 | 54.3 | 15.3 | 59.6 | 17.7 | 7.0 | 16 | 4.76 | 91 | A1190-R0 |
|
|
